TFP SERIES

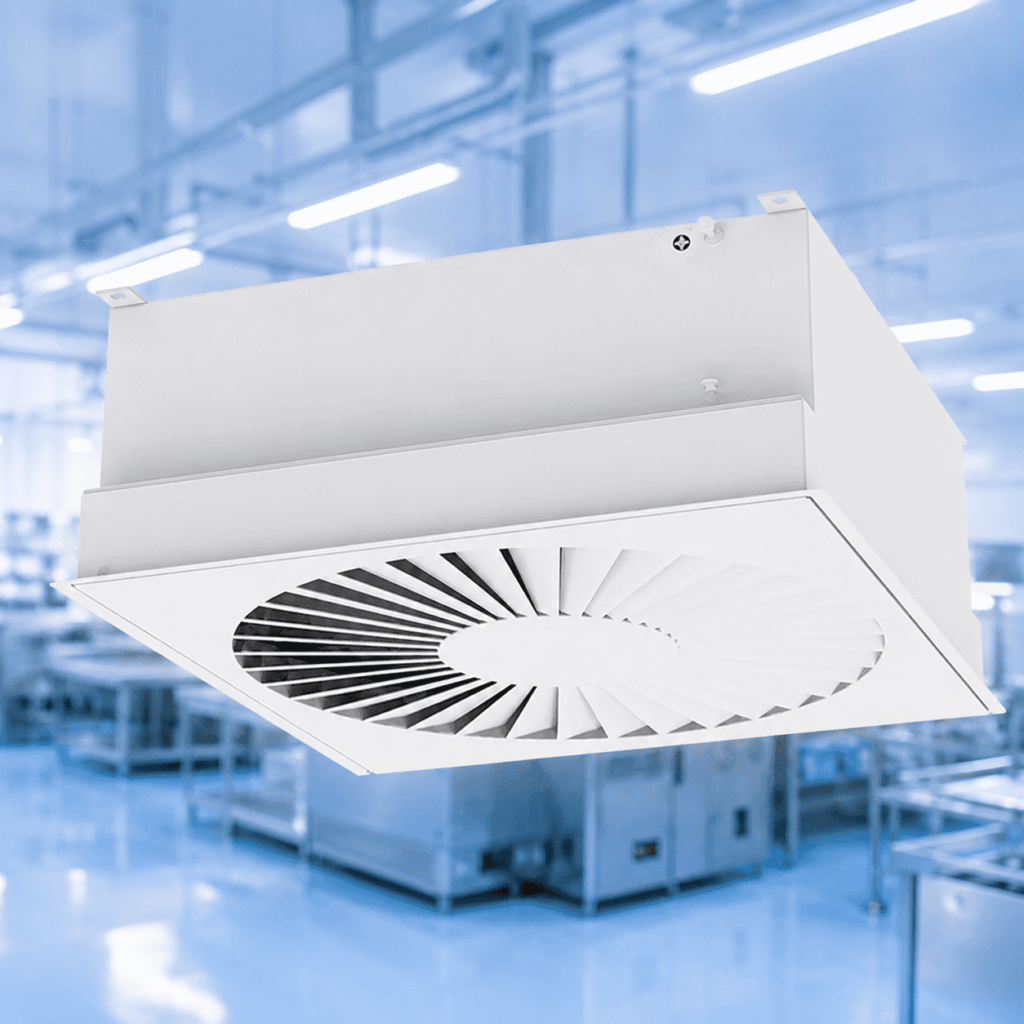

Pharmaceutical cleanroom filter units are used for final air purification with pleated filter panels to remove suspended particles. Used in highly sensitive areas in pharmaceuticals, medicine and biology.
Folded filter panels with gel seal on the side
output flow meet the highest hygienic requirements
Easy, quick and safe filter replacement
The air distribution device is secured with magnets and can be folded down for easy cleaning and inspection; Filter replacement using patented twist clamp
New supports for installation in suspended ceilings
Robust welded construction
Compact design suitable for low ceilings
Various air distribution devices to meet individual requirements
Horizontal or vertical connection
Removable pipe for installation in solid ceilings in case of horizontal connection
For cleanliness classes 5 – 8, in accordance with ISO 14644-1
Meets the hygiene requirements of VDI 6022
Application
Filter unit for pharmaceutical cleanrooms for ceiling mounting as a final filter and air distribution device in the pharmaceutical industry.
Filter elements are used to clean supply and exhaust air from suspended particles, aerosols, toxic dust, viruses and microbes.
Execution options
TC-S: Round connection for top connection, top side eyelets for suspension
TC-FC: Round socket for connection from above, with supports for installation in suspended ceilings
SC-S: Round pipe for side connection, upper side eyelets for suspension
SC-FC: Round socket for side connection, with supports for installation in suspended ceilings
SCR-S: Round side connection, removable, top side eyelets for suspension
SCR-FC: Round socket for side connection, removable, with supports for installation in suspended ceilings
Design
Sheet steel, powder coated RAL 9010, pure white
Standard sizes
400, 500, 600, 625 [mm]
Accessories
FD: Ceiling swirl diffuser
TDF: Ceiling swirl diffuser

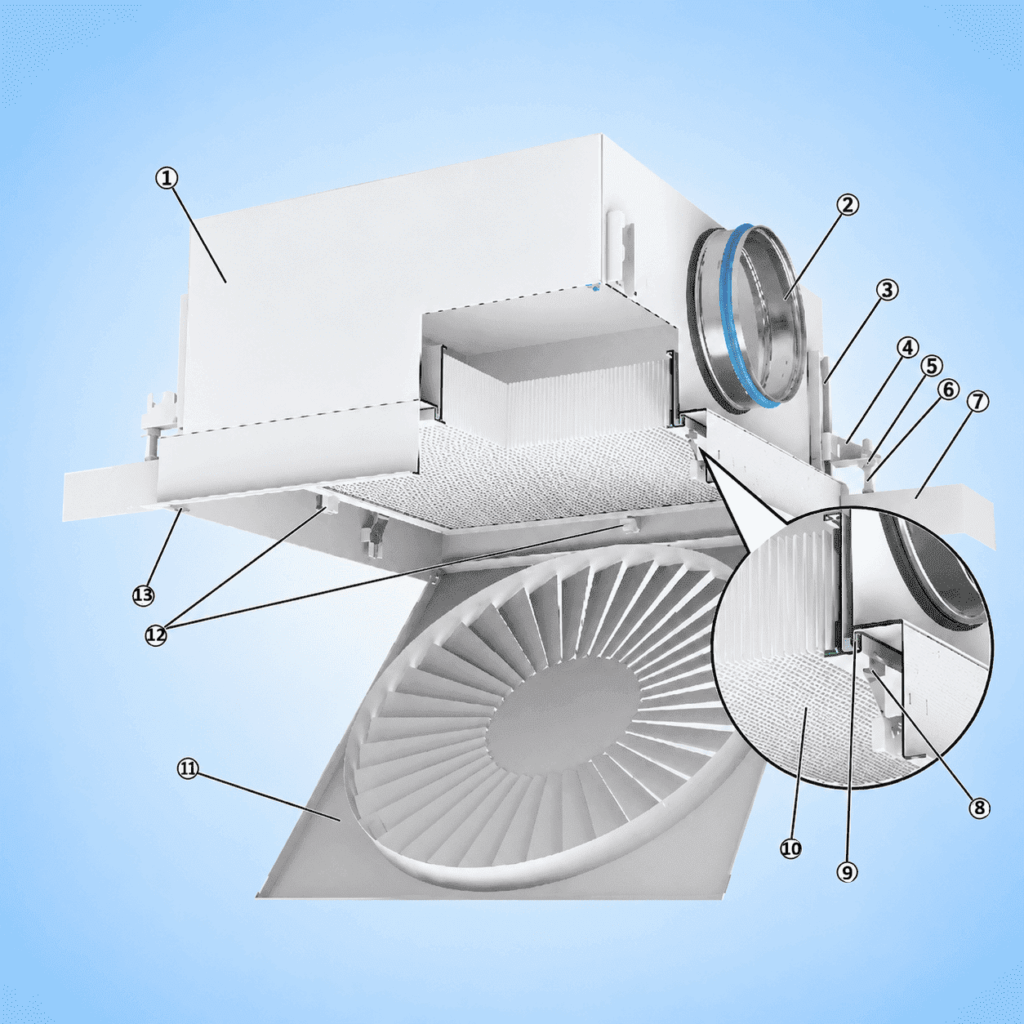

① Housing
② Removable pipe with seal
③ C-profile for adjustable feet
④ Supports for suspended ceiling
⑤ Lock nut
⑥ Adjustment screw
⑦ Suspended ceiling
⑧ Fixing element
⑨ Gel seal
⑩ Filter element
⑪ Air distribution device (can be folded down)
⑫ Rotary clamp (patented)
⑬ Holding magnets
