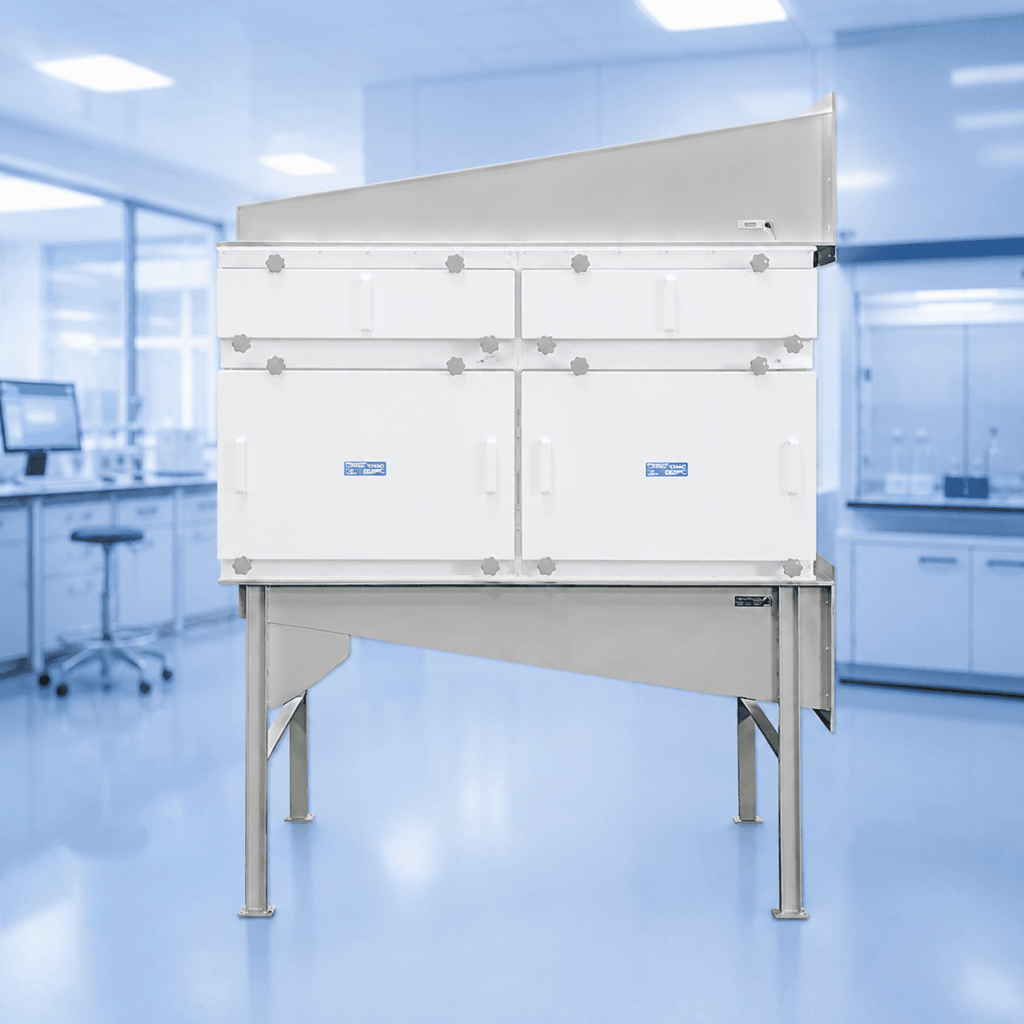

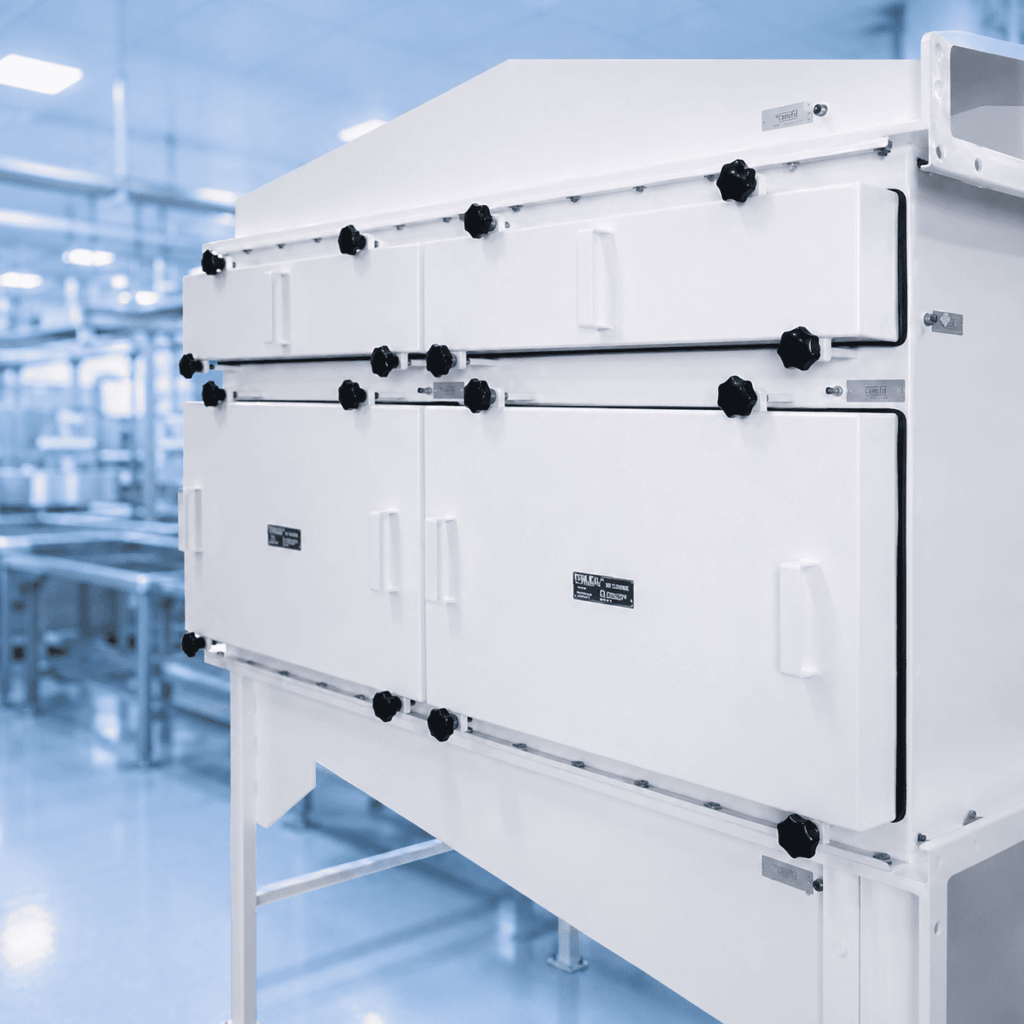

KSFSSP SERIES
For filter block systems with horizontal air inlet and outlet.
Pipe for installing filter block systems in the air duct
Tubes made of sheet steel with disinfected powder coating RAL 9010
Air guide plates in the outlet pipe ensure uniform air flow through the system, reduce overall pressure drop and reduce energy costs.
For filter block systems with up to 6 housings in one row
Each filter block system undergoes a leak test
Optional equipment
Stainless steel construction
Application
KSFSSP series branch pipe for embedding filter block systems with high efficiency filters for difficult conditions of the KSFS series in air ducts
Design
M: Housing without pre-filter
PM: Housing with pre-filter
SPC: Steel, powder coated RAL 9010, pure white
STA: Stainless steel
Number of buildings: 1 – 6
MD: Housing with service side
TLBR: air inlet top left, air outlet bottom right
TRBL: air inlet top right, air outlet bottom left
TRBR: air inlet top right, air outlet bottom right
TLBL: air inlet top left, air outlet bottom left
SPM: Factory assembled body and pipe
SPP: Body and pipe supplied separately
Additional components
The corresponding filter elements must be ordered separately
Folded Filter Panels (MFP)
Folded Filter Modules (MFC)
Activated Carbon Filter (ACF) Modules
Other filter elements on request
High efficiency duct filter (KSFS)
