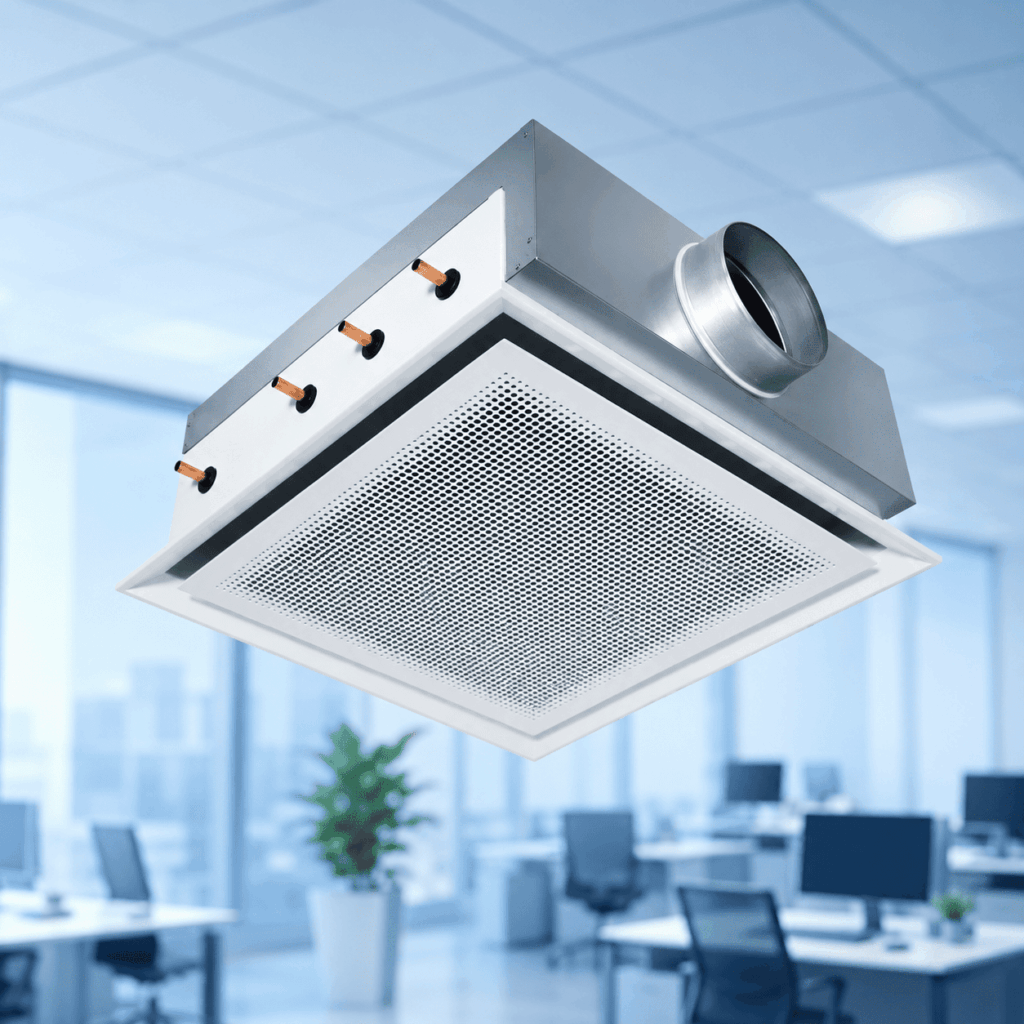

OETK SERIES
Active chilled beams for heating and cooling, with 2-pipe or 4-pipe heat exchanger, for installation in various ceiling systems. Active chilled beams supply conditioned primary (fresh) air to the room using heat exchangers to provide additional cooling and/or heating
- Recommended for rooms up to 4.20 m high
- High heating and cooling capacity with low primary conditioned air flow and low noise level
- High level of comfort in the working area due to low air flow speed
- Five nozzle options to optimize ejection levels based on needs, including adjustable twin nozzles
- Removable recirculation grille, secured with magnets, with openings tapering towards the edges
Additional equipment and accessories
- Automation kit
- Adjustable guide lamellas to change the direction of air supply
- Powder coating in various colors, e.g. RAL CLASSIC or NCS
Description
Primary air is supplied to the mixing chamber through nozzles. The resulting vacuum area at the point of air supply leads to the fact that secondary air (air from the room) passes through the recirculation grille, where it then continues to move through the heat exchanger. Passing through the heat exchanger, the secondary air is heated or cooled; then primary and secondary air are mixed and supplied horizontally into the room through air outlet slots.
- Nominal length 600, 1200 mm
- Length 593, 598, 618, 623 mm (one tile), or 1193, 1198, 1243, 1248 mm (two tiles)
- Height 230/245 mm / Width 593, 598, 618, 623 mm
- Primary air pipe, diameter 123/158 mm
- Primary air flow level 14 – 87 l/s or 50 – 310 m³/h
- Cooling capacity Up to 2170 W
- Heating capacity Up to 2990 W
- Max. operating pressure, water circuit 6 bar
- Max. working temperature 75°C

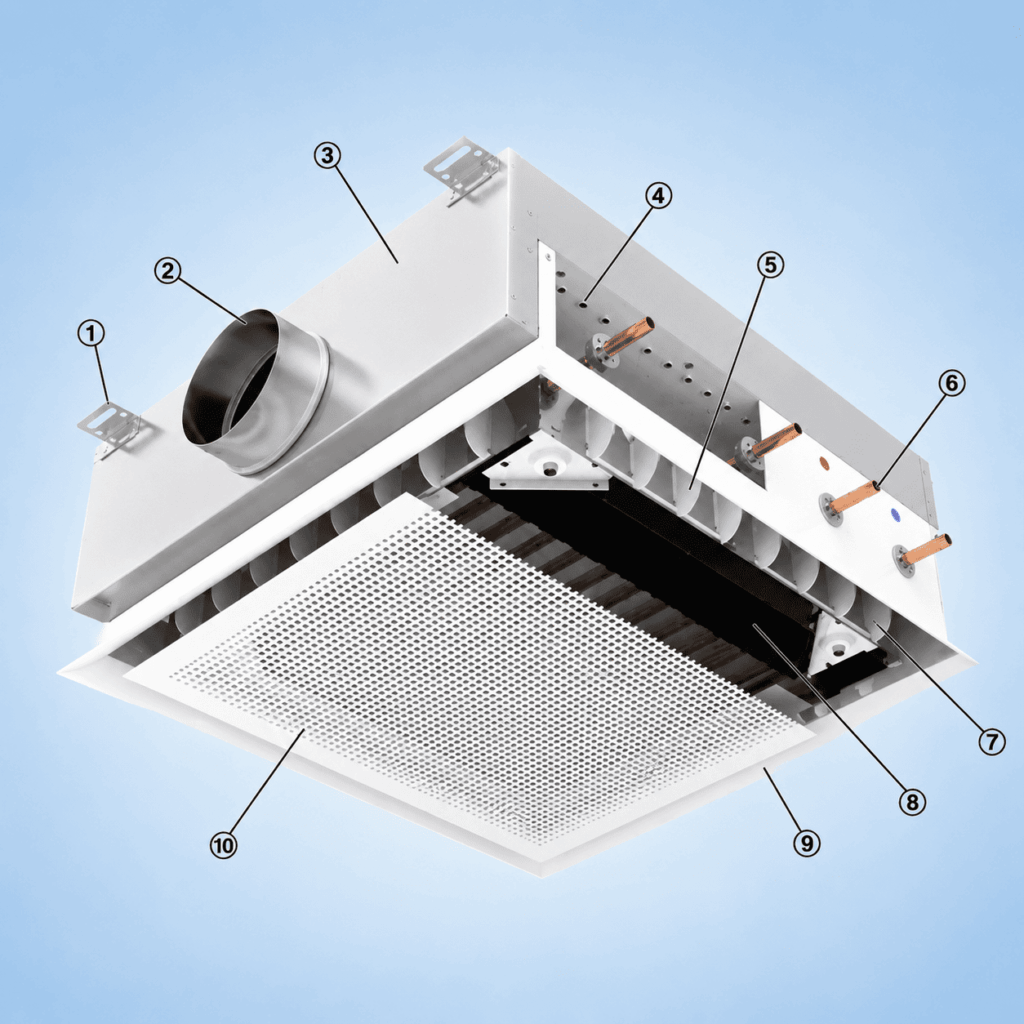

① Hanging bracket
② Primary air pipe
③ Housing
④ Plate with stamped nozzles
⑤ Guide slats (on request)
⑥Water fittings
⑦ Casing (on request)
⑧ Heat exchanger
⑨ Front frame
⑩ Recirculation grille
