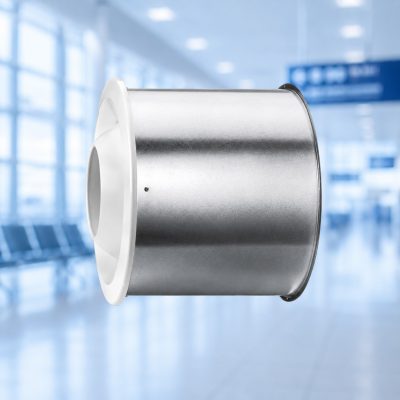

TJN SERIES
The new TJN series nozzles have improved acoustic characteristics and are also more energy efficient.
Sizes: 160, 200, 250, 315 and 400 mm
Air flow level 20 – 1000 l/s or 72 – 3600 m³/h
Visible parts are made of high-quality polymer in white aluminum or pure white RAL
Improved nozzle contours
Deflection angle indication, deflection angle limitation and adjustment from –30 to +30° on the built-in scale
The outer ring can be easily removed thanks to the bayonet fastening
Additional equipment and accessories
5 sizes, each with a round spigot or optionally with a connecting piece for round or rectangular ducts
Vortex element with acoustically optimized guide vanes with unique serrated edges and plug for two-stage reduction in air jet length
External electric drive of compact size
The electric drive can be integrated into the building control system
Internal memory alloy thermal drive for automatic deflection angle adjustment
All variants are also available with external housing
Description
Nozzles are an ideal solution when supply air must travel long distances from the supply point to the work area. It is possible to adjust the deflection angle and, accordingly, the direction of the air flow, change the heating or cooling modes. The temperature difference between the supply air and the room can range from –12 to +20 K.
Cooling mode
Setting the cooling mode is possible with a positive deflection angle of up to 30°. The supply air stream is directed towards the ceiling, but due to the higher density of cold air, the angle of deflection of the air stream towards the floor increases, because the distance from the nozzle increases. When the supply air stream reaches the work area, the temperature difference between the supply air and the room air, as well as the air speed, are reduced to a comfortable level.
This principle of operation is used for long distances.
Heating mode
Setting the heating mode is possible at a negative deflection angle of –30° or less. The supply air stream is directed into the working area. Due to the lower density of warm air, the jet adheres well to the surface. When the supply air stream reaches the work area, the temperature difference between the supply air and the room air, as well as the air speed, are reduced to a comfortable level.
The nozzle deflection angle can be changed manually or using a thermal or electric drive.
The swirl element and plug (optional) reduce the jet length by up to 65% or 75%.
Standard sizes 160, 200, 250, 315, 400 mm
Air flow range 20 – 1000 l/s or 72 – 3600 m³/h
Adjustable deflection angle from –30 to +30°
Temperature difference between supply air and room –12 to +20K
A TJN-E*
B TJN, with outer ring removed
C TJN-T1
① Nozzle
② Outer ring
③ End position, adjustable
④ Position indicator
⑤ Spherical nozzle body
Optional
⑥ Outer housing
⑦ Electric drive
⑧ Thermal drive
⑨ Vortex element and plug
