NM230A SERIES
For switching between heating and cooling modes of adjustable air distribution units.
Drives for air distribution devices of the VD, VDL, VDR, QSH, ISH, TJN and DUK series
Changing the direction of air supply for two different operating modes
Supply voltage 24 V AC/DC or 230 V AC
Control input: 1-wire or 2-wire control (3-position)
All extras The components are determined in accordance with the order code of the air distribution device.
E1
Application
Drive NM230A
Actuators for switching between heating and cooling modes of air distribution units, suitable for VD, VDL, VDR and DUK series
Design elements and characteristics
Supply voltage 100-240 Vac
1- or 2-wire control (3-position)
Mechanical stops for adjusting the air supply angle
Reverse operation possible
Release button to switch to manual mode
E2
Application
Drive NM24A
Actuators for switching between heating and cooling modes of air distribution units, suitable for VD, VDL, VDR and DUK series
Design elements and characteristics
Supply voltage 24 V AC/DC
1- or 2-wire control (3-position)
Mechanical stops for adjusting the air supply angle
Reverse operation possible
Release button to switch to manual mode
E4
Application
Drive series 223E-230-150-003
For switching between heating and cooling modes of air distribution units, suitable for QSH, ISH and DUK series
Linear actuator for concealed installation inside air distribution units; ideal solution for surface-mounted devices
Design elements and characteristics
Supply voltage 230 Vac. current
2-wire control(3-position)
Mechanical stops for adjusting the air supply angle
E5
Application
Drive series 223E-24-150-002
For switching between heating and cooling modes of air distribution units, suitable for QSH, ISH and DUK series
Linear actuator for concealed installation inside air distribution units; ideal solution for surface-mounted devices
Design elements and characteristics
Supply voltage 24 V AC
2-wire control(3-position)
Mechanical stops for adjusting the air supply angle
E7
Application

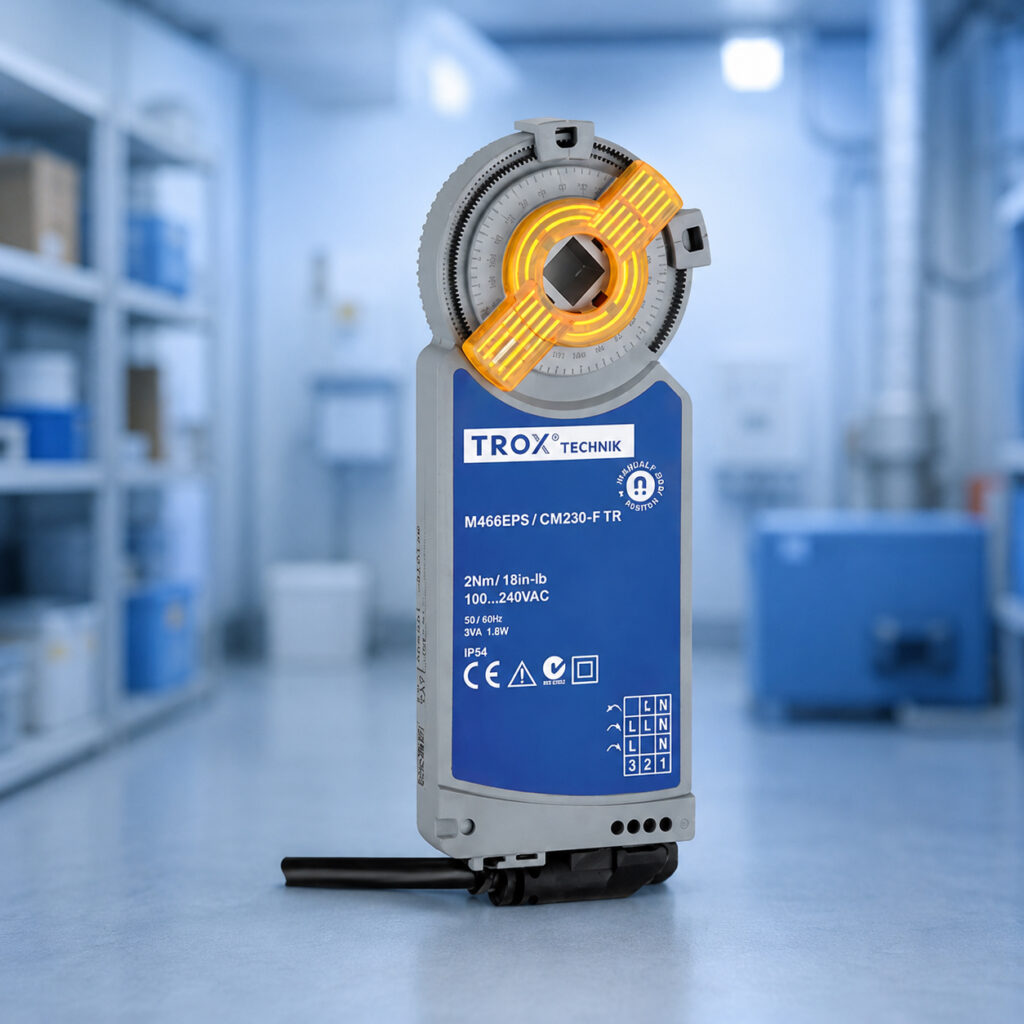

Drive series CM230-F
For switching between heating and cooling modes of air distribution units, suitable for TJN series
Design elements and characteristics
Supply voltage 230 Vac. current
1- or 2-wire control (3-position)
Mechanical stops for adjusting the air supply angle
Lock with lock for connection to the nozzle axis
Trip magnet
E8
Application
Drive series CM24-F
For switching between heating and cooling modes of air distribution units, suitable for TJN series
Design elements and characteristics
Supply voltage 24 V AC/DC
1- or 2-wire control (3-position)
Mechanical stops for adjusting the air supply angle
Lock with lock for connection to the nozzle axis
Trip magnet
Drive NM230A
Supply voltage 100 – 240 V AC VDC –15% +10%, 50/60 Hz
Power consumption Max. 5.5VA
Torque 10 Nm
90° rotation time 150 s
Input control signal 1- or 2-wire control (3-position)
Connection cable 3 × 0.75 mm², 1 m long
IEC protection class II (protective insulation)
Protection level IP 54
EU Compliant Electromagnetic compatibility complies with 2014/30/EU, Low Voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU
Working temperature -30 to 50°C
Weight 0.75 kg
Drive NM24A
Supply voltage (AC) 24 VAC ± 20%, 50/60 Hz
Supply voltage (DC) 24 VDC ±20%
Power consumption (AC) Max. 3.5VA
Power consumption (DC) Max. 1.5 W
Torque 10 Nm
90° rotation time 150 s
Input control signal 1- or 2-wire control (3-position)
Connection cable 3 × 0.75 mm², 1 m long
IEC protection class III (for low voltages)
Protection level IP 54
EU Compliant Electromagnetic compatibility complies with 2014/30/EU, RoHS Directive 2011/65/EU
Working temperature -30 to 50°C
Weight 0.75 kg
