For EASYLAB fume hood controllers or room controllers equipped with a text display
Control panels are used in conjunction with fume hood controllers or room controllers to display operating parameters, activate functions and indicate the operating status of the system
Signaling of safety functions for fume hoods, in accordance with the requirements of EN 14175, or indication of the operating status of the system
Display of actual and setpoint values as well as system status messages
Wireless communication with Bluetooth module
40 character text display
Buttons for setting factory operating mode settings and activating special functions
Project-specific feature set and corresponding configuration buttons
Connector for connecting a controller, setting its configuration and diagnosing faults
Housing for concealed installation on the side frame of a fume cupboard or for wall mounting
Application

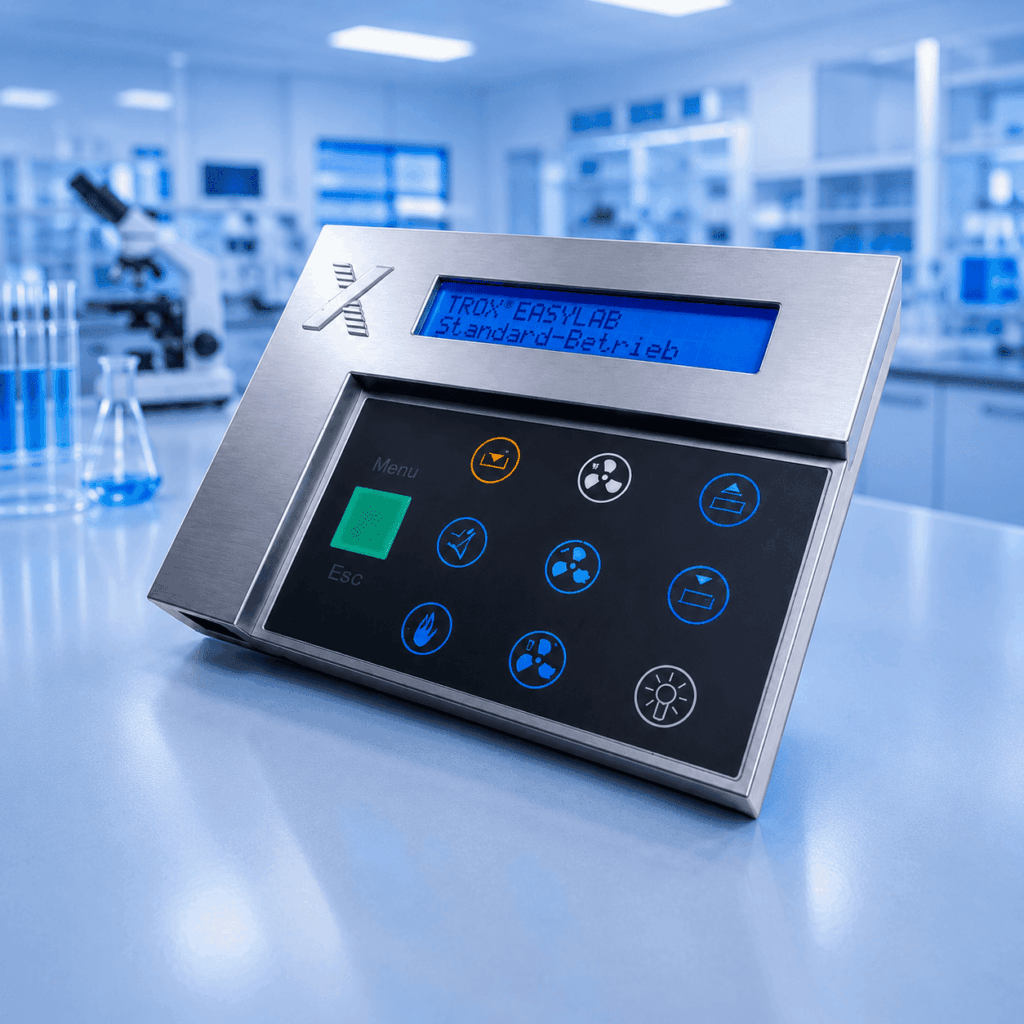

BE-LCD-01 series control panels for displaying operating parameters and controlling the aerodynamic functions of fume hoods or rooms
Display of actual and setpoint values as well as system status in text form or on the status display
Light and sound alarm
Setting the factory operating mode settings
Control of lighting, automatic screens or dampers, requiring no additional installation or electrical connections
Control panel for fume hood controller
Display showing system status in accordance with EN 14175 standard
Connection to EASYLAB TCU3 fume hood controller
Control panel for indoor air parameters regulator
Display of the status of the flow controller or differential room air pressure
Connection to EASYLAB TCU3 or TAM room controller with active room air control function
Characteristics
Large three-color display to show system status
Buttons and functions can be configured to suit individual requirements
Easy to use – buttons for available functions are shown on the display, buttons for unavailable functions are hidden
High reliability due to continuous monitoring of communication between controller and control panel
Detachable adapter providing four different viewing angles
Side frame or wall mounting
