UNIVERSAL SERIES
Modular control elements for VAV controllers, especially for use in exhaust systems with aggressive media
The choice of elements depends on the application
Servo drives with different torques
For contaminated extract air or for pressure regulation
Optional equipment
Servomotors with safety function for damper blade in position OPEN or CLOSED (with return spring)
Application
Electronic air flow controllers of the Universal series (static) designed to control VAV flow controllers

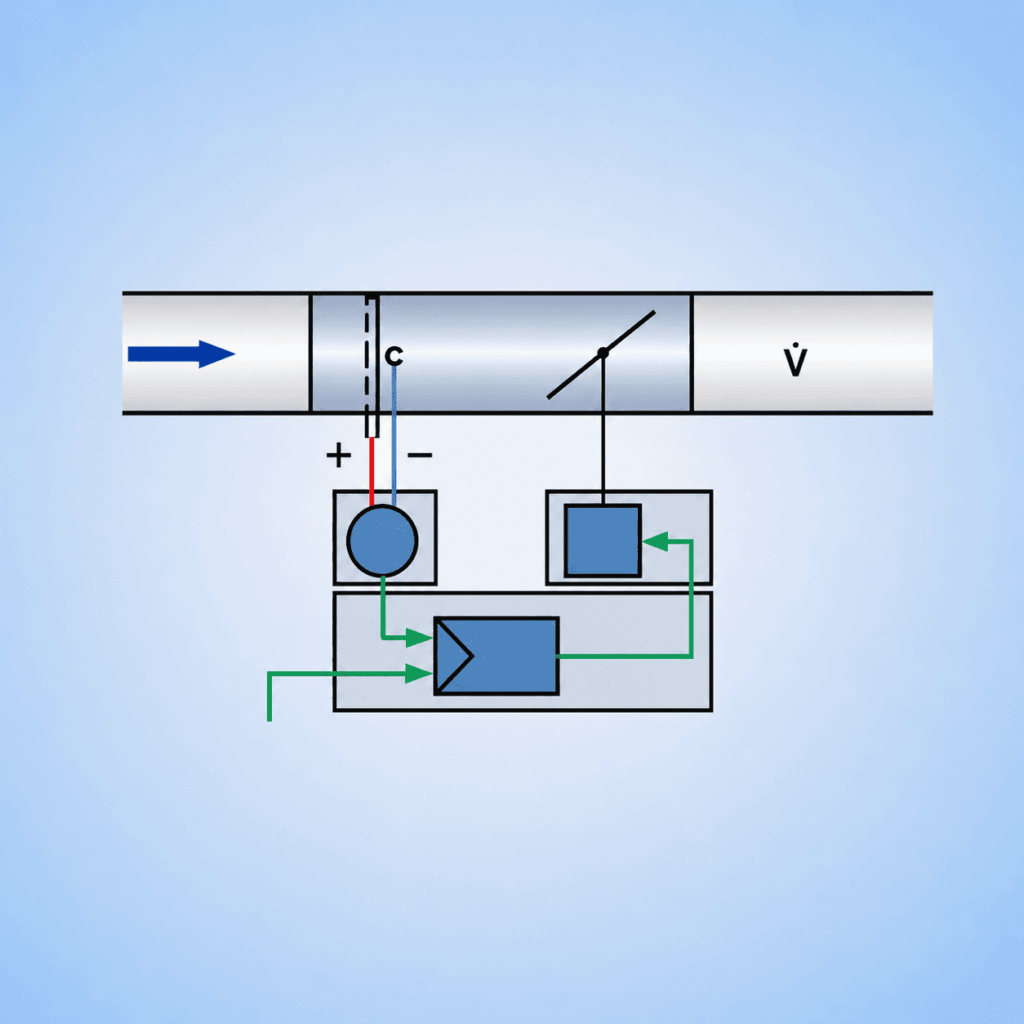

Air flow control or differential pressure control is performed based on a statistical measurement of the differential pressure

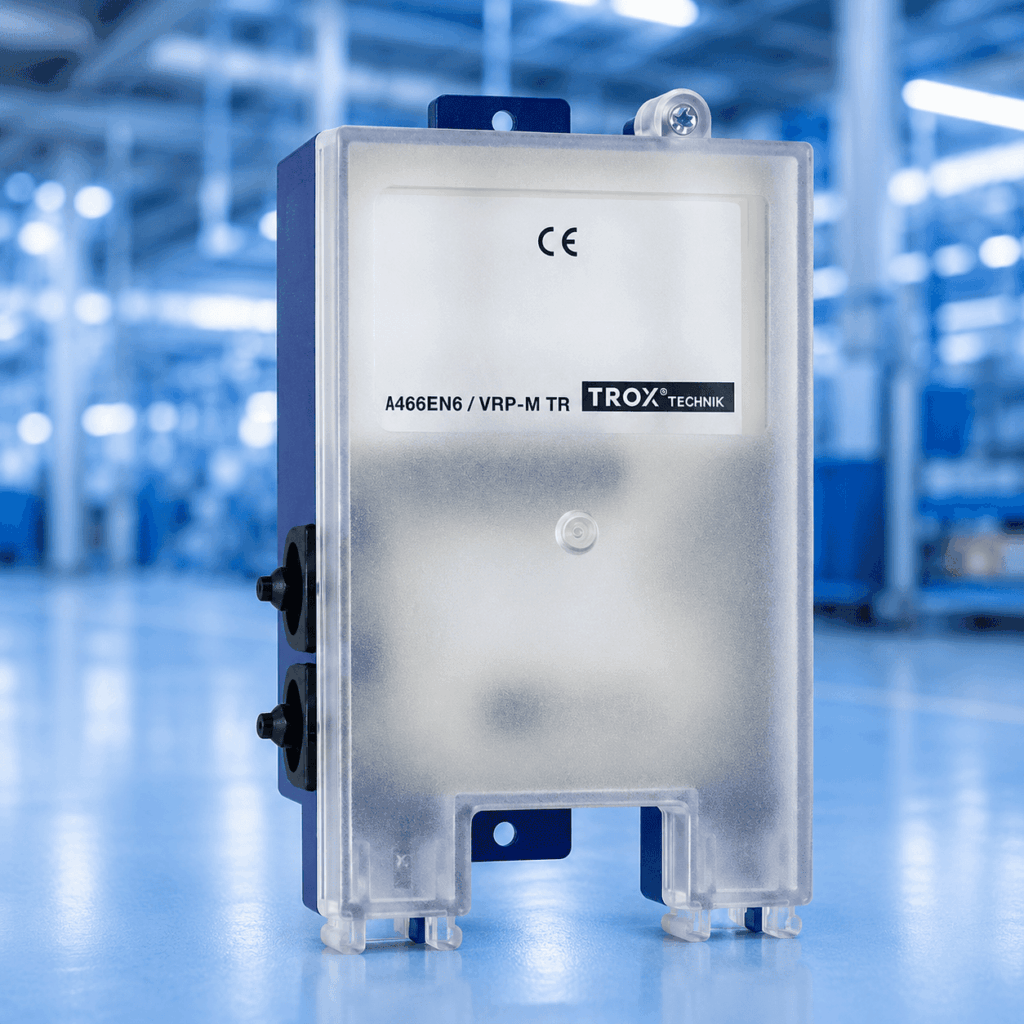

The static differential pressure transmitter and electronic controller can be installed in the same housing or separately
Servomotor or servomotor with spring return is installed separately
Signals from room temperature controller, BMS system, air quality controller, etc. allow you to set the required flow rate
Priority control via switches or relays
Actual air flow or pressure drop is represented as a linear voltage signal
Controller parameters are set at the factory
No additional configuration required at installation site
Please note that for difficult operating conditions, before installation it is necessary to test the suitability of the materials from which the flow regulator and differential pressure sensor are made, taking into account the composition and concentration of harmful substances with which they will come into contact.
