RN SERIES
Round mechanical air flow regulators are designed to regulate the flow of supply and exhaust air for systems with constant flow

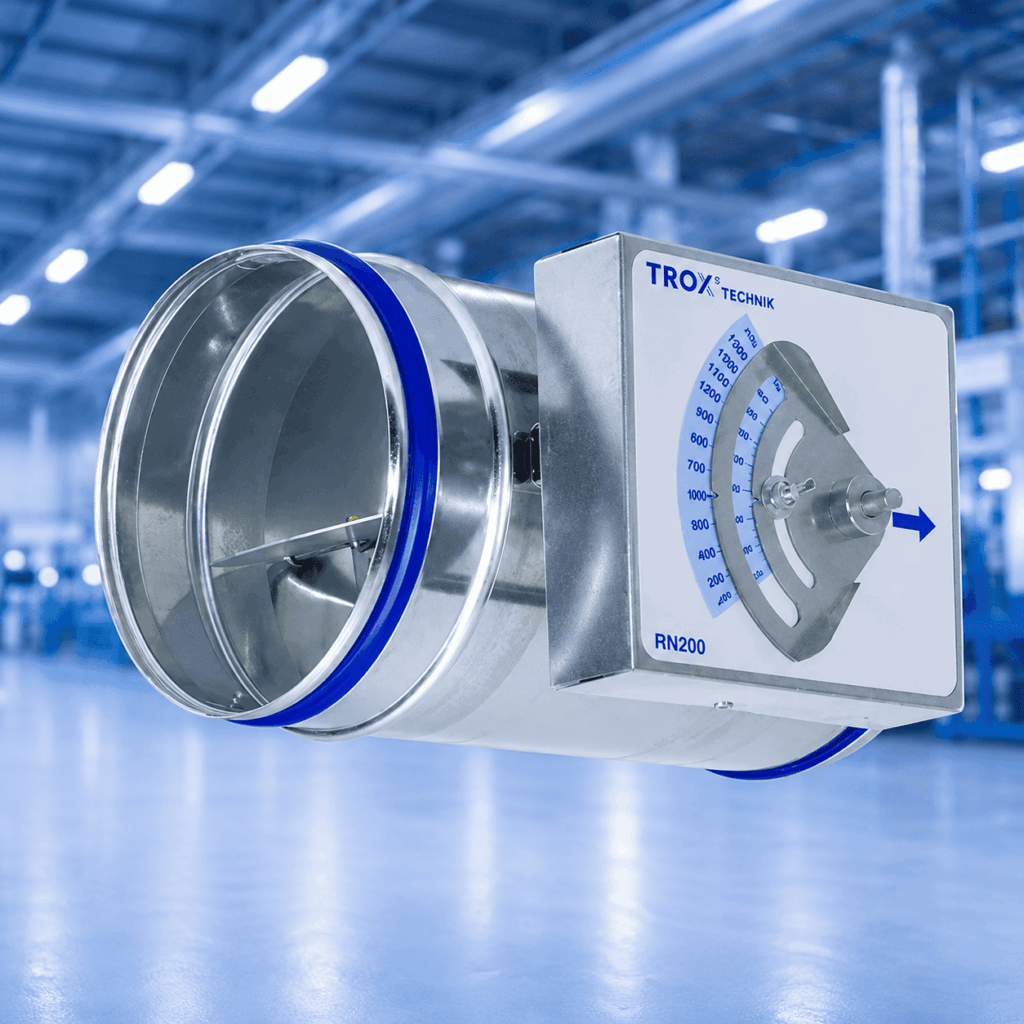

The required air flow can be set using the scale on the housing; no additional equipment is required
High control accuracy
No on-site testing required prior to commissioning
Allowable air speed up to 12 m/s
Can be installed in any position; no maintenance required
Housing tightness according to EN 1751 class C
Description
An air flow regulator is a mechanical device that operates without an external power source. The control valve flap with bearings with a low friction coefficient under the influence of aerodynamic force is installed in such a position that, regardless of pressure differences, a constant specified air flow is maintained. Under the influence of the aerodynamic force of the air flow, the damper closes. The inflatable compensator transmits and increases the force and at the same time reduces damper vibrations. A leaf spring, located behind the cam disc, countersacts the closing force of the valve. The cam disk is designed in such a way that when the pressure changes, the valve flaps are adjusted to maintain a constant air flow within small deviations.
Easy commissioning
The required air flow can be easily and quickly set using the adjustment knob with a pointer; no additional equipment is required. The advantage over standard throttle valves is that there is no need for multiple valve measurements and adjustments, which are performed by a qualified specialist. If a change in pressure occurs, for example, when an air duct cross-section opens or closes, the air flow in the entire system with throttle valves will also change, while this does not happen in a system with mechanical flow regulators. Mechanical flow regulators will immediately change the position of their dampers so that the set air flow remains unchanged.
Additional equipment and accessories
Soundproofing coating to reduce noise generated by the chassis
Optional CA, CS or CF Series silencer to reduce noise generated by air flow
Water heater Series WL or electric air heater Series EL for secondary air reheating
Servomotor for switching between required air flow rates

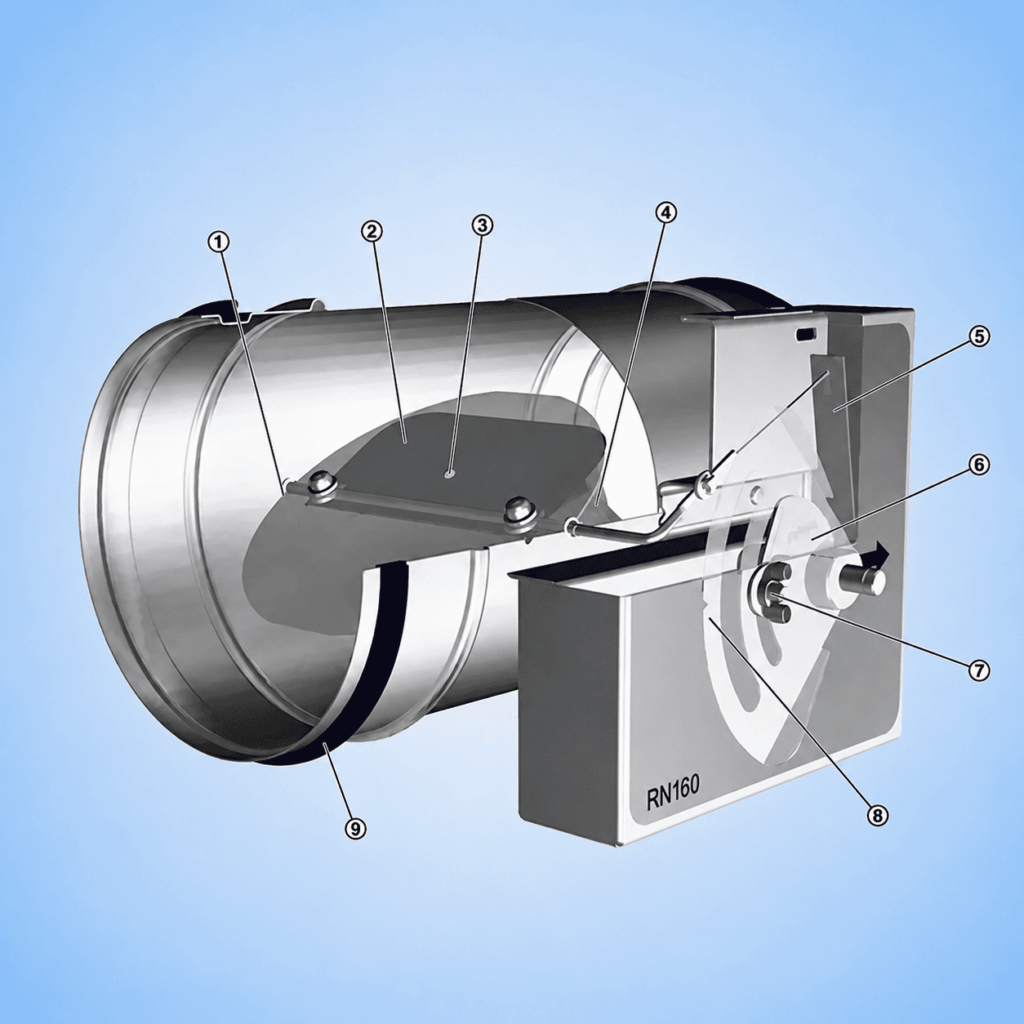

① Valve blade
② Inflatable compensator
③ Compensator inlet
④ Shaft
⑤ Leaf spring
⑥ Cam mechanism
⑦ Air flow scale stop
⑧ Air flow scale
⑨ Seal
